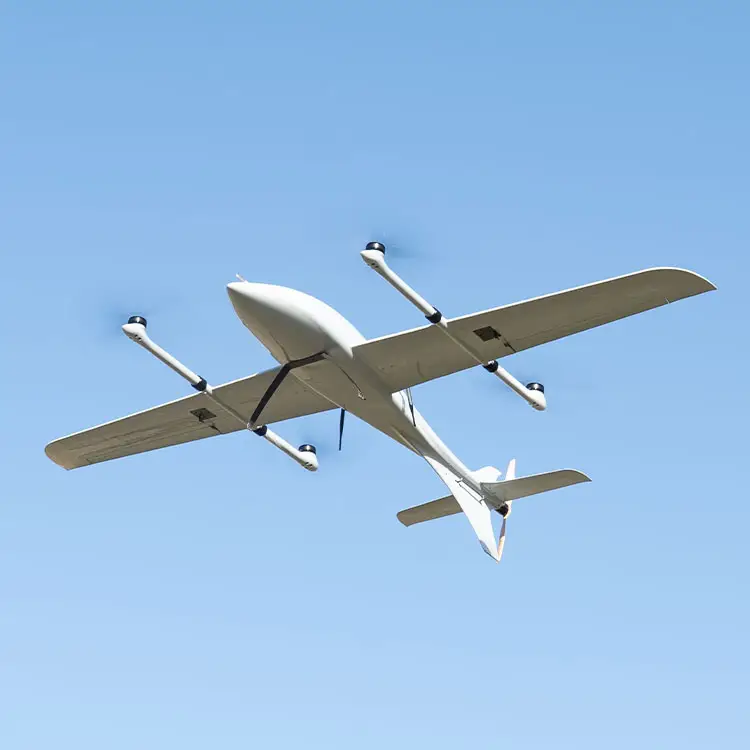

Zhuque(Pheonix) VTOL UAV

Small Scale VTOL UAV 4+1 VTOL layout, 1.5kg payload capacity

Aircraft Length: 1510 mm
Aircraft Height: 233 mm
Aircraft Wingspan: 2800 mm
Engine: full electric propulsion system
MAX Payload: 1.5 kg
MAX Take-off weight: 9 kg
Cruising Speed: 22 m/s
Endurance: 3 hours with 1 kg payload (actual flight test)
Climb Rate: 4 m/s (fixed wing)
Max Altitude: 4500 Meter
Operational Temperature: -20℃-50℃
Wind Resistance: takeoff and landing 27-38km/hr; cruising 30-45 km/h


Phoenix VTOL UAV MTOW is 9kg, drones that weigh between 250 g and 10 kg can be registered with most federal institutions in a standard and uncomplicated process, and Phoenix VTOL UAV is the one that is able to carry a good payload weight in this category, as well as features fantastic endurance (3 hours).

Reliability and safely performance

Phoenix VTOL UAV adopts common 4+1 VTOL layout (quad lifting + one tail pushing thurst) make the UAV more safe and reliable, as well as igh manoeuvrability

WeChat Image_20220208113349.jpg

Professional design trustworthy

we use Vortex-Lattice Method, CST Airfoil Parameter Method, CFD simulation, also another professional design methodologies to achieve each specifications.
